Name: Commercial Buildings Wholesale Design Professional Vertical And Farm Water Pump Generator
Brand: Commercial Buildings Wholesale Design Professional Vertical And Farm Water Pump Generator
SKU: EG-1
Rating: 4.7 (177 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: EG-1

Application: Commercial Buildings, HVAC OEM, Booster pump,water circulation pump,water transfer,etc.

Structure: Single-stage Pump

Power: Electric

Theory: Centrifugal Pump

Design: European standard BS EN733/ DIN24255

Material: Cast iron,Ductile iron,Brass,etc.

Temperature: -10~85â„ƒ standard, 85~105â„ƒ on request

Flow Rate: 4~500m3/h

Head: 8~150m

Speed: 1450/2900 rpm (50Hz),1750/3500 rpm (60Hz)

Certificate: ISO9001:2008,PSB

Βασικές πληροφορίες

Πιστοποίηση: ISO9001:2008,PSB

Model Number: EG-1

Πληρωμής & Αποστολής Όροι

Packaging Details: Plywood cases/wooden cases

Supply Ability: 1000 Set/Sets per Month

Περιγραφή προϊόντων

Wholesale Professional Design Vertical And Farm Water Pump Generator

Product Description

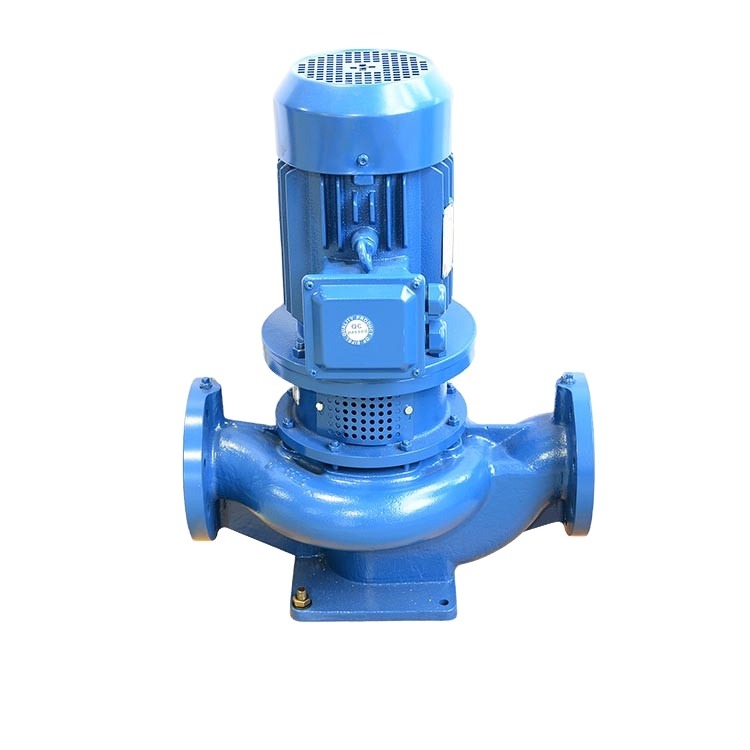

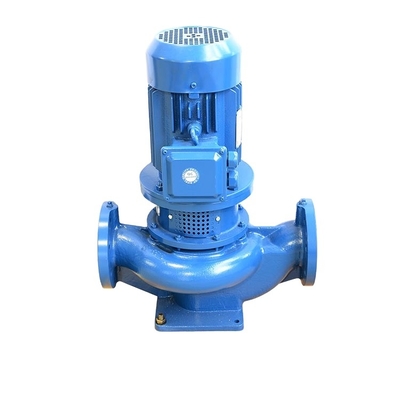

Pump type	EG series vertical single stage in-line centrifugal pump
Design Standard	European standard BS EN733/DIN24255
Structure	Vertical,Single-Stage,Single-Suction,Volute Casing,In-line,Close-coupled
Discharge Size	DN40~200mm
Flange	DIN2501 PN16 GB/T17241.6 PN1.6
Motor	IEC standard motor
Casing	Cast Iron standard,Ductile Iron options on request
Impeller	Brass standard,Cast Iron/ASTM304/ASTM316 options on request
Shaft	ASTM420 standard,ASTM304/ASTM316/ASTM1045 options on request
Shaft Seal	Mechanical Seal standard
Flow Rate(Q)	4~500m³/h
Head(H)	8~150m
Speed	1450/2900rpm(50Hz),1750/3500 rpm(60Hz)
Max Temperature	85^°C(standard)
Working Pressure	1.0MPa standard;1.6MPa(option on request)
Conveying Medium	Clean water or liquids similar to clean water in physical property
Advantage	sharply reduce installation space,motor shaft is pluged into pump shaft to ensure alignment of pump and motor,voice-saving,high-effective.
Appliactions	Cold and hot water circulation pump,municipal water supply,HVAC and Cooling Tower,booster pump,irrigation and agriculture,pool and fountain water transfer,etc.

EG series Performance Data Table

For more detailed specification and performance data , please contact us directly by email or call.
